ExcelDoku

Here is a numbers game in Excel where a number can only appear once on a box of nine, and along the row and column. It creates the puzzle reasonably fast as it's written, as usual, with Rudimentary but easy to understand code.
During development I had to stop Excel a few times with the Task Manager when it went into an endless loop. So, make sure to save the file before running the game!

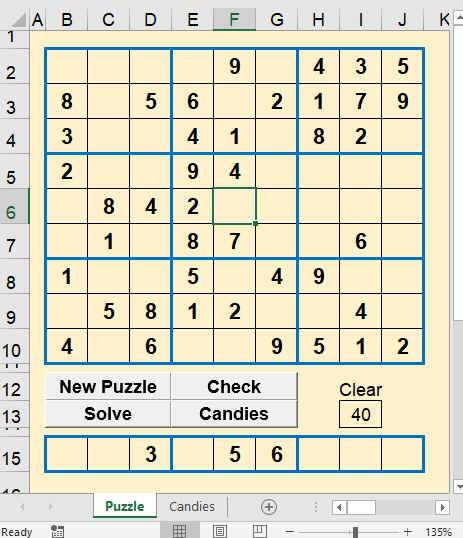

Let's start by laying out the grid. Name the sheet Puzzle. Then copy it and name the copy Solution. The Solution sheet only uses down to row 10, the rest can be deleted.

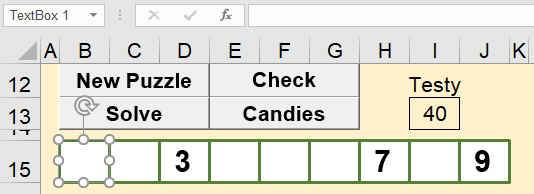

It shows candidates in row 15 for a cell as it's selected. Hit the Candies button and we'll hide the candidates or bring them back.

Option Explicit

Sub ShowHideCandies()

  Range("D15").EntireRow.Hidden = Not Range("D15").EntireRow.Hidden

End Sub

Now we'll create a New Puzzle.

Sub CreatePuzzle()

Dim intRow As Integer
Dim intColumn As Integer
Dim intLoop As Integer
Dim intRnd As Integer
Dim blnOK As Boolean
Dim intEnd As Integer
Dim intFinish As Integer

  'Delay loop or ScreenUpdating appears to set to False too quick
  For intLoop = 1 To 10
    Range("A1 : J10") = ""
    Range("A1 : J10").Font.Color = vbBlack
  Next intLoop

  Application.ScreenUpdating = False

'If puzzle is stuck then start again from here
StartHere:

  'Counter for starting again
  intFinish = 0
  Randomize

  For intRow = 2 To 10

'Try each row up to 20 times from here
TryFromHere:

    'If this puzzle does not work then go to the beginning again
    If intFinish > 20 Then GoTo StartHere

    'Clear the row as it may be another attempt
    Range(Cells(intRow, 2), Cells(intRow, 10)) = ""

    For intColumn = 2 To 10

      'Counter for abandoning the row
      intEnd = 0

      Do

        'Random number 1 to 9
        intRnd = Int(Rnd * 9 + 1)

        'Set OK to place into cell
        blnOK = True

        'Is the number in the block of 9 cells?

        'Unrem this when the function is written
        'blnOK = Not funcCheck3x3(intRow, intColumn, intRnd)

        'Check along the row and the column
        For intLoop = 2 To 10

          If Cells(intRow, intLoop) = intRnd _
          Or Cells(intLoop, intColumn) = intRnd Then

            blnOK = False

          End If

        Next intLoop

        'Increment counter to start row again
        intEnd = intEnd + 1

        'If row is not OK after 20 tries then start row again
        If intEnd = 20 Then
          'Increment counter to start from the beginning
          intFinish = intFinish + 1
          'Start row again
          GoTo TryFromHere
        End If

      Loop Until blnOK

      'It's OK, so put the number into the cell
      Cells(intRow, intColumn) = intRnd

    Next intColumn
  Next intRow

  'Copy numbers to Solution sheet
  Worksheets("Solution").Range("A2 : J10").Value _
  = Worksheets("Puzzle").Range("A2 : J10").Value

  'More to come

  'Fire the Candies proc
  Range("F7").Select
  Range("F6").Select

End Sub

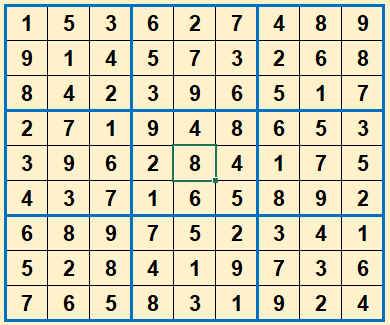

That's not quite correct as there are duplicate numbers in the blocks of nine. Here is the function to check for those.

Function funcCheck3x3(ByVal iRow As Integer, ByVal iCol As Integer, iRnd As Integer) As Boolean

'Check whether the number is already in block of 9
Dim intR As Integer
Dim intC As Integer

  'Find top left cell of the block
  'The row
  intR = 2
  If iRow > 4 Then intR = 5
  If iRow > 7 Then intR = 8

  'The column
  intC = 2
  If iCol > 4 Then intC = 5
  If iCol > 7 Then intC = 8

  'Cycle through the block
  For iRow = intR To intR + 2
    For iCol = intC To intC + 2

      If Cells(iRow, iCol) = iRnd Then funcCheck3x3 = True
      'The number is already there

    Next iCol
  Next iRow

End Function

Now unrem the function call in the CreatePuzzle procedure.

That gives us the numbers for the puzzle but not the means of playing a game. For this we must hide some numbers. The more number are hidden the harder it is to rediscover them again.
To select the amount of numbers to hide I've put a validation list into cell I13. The list is on the Solution sheet at B12:B18.

In I13 on the Puzzle sheet was Clear 40 or you might like to have appropriate text to describe the task.

=VLOOKUP(I13,Solution!B12:C18,2)

Here is the code to add to the CreatePuzzle procedure to hide random cells.

  'More to come - you can delete me now
  'Erase some numbers according to users' choice in I13

  For intLoop = 1 To Range("I13")

    Do
      intRow = Int(Rnd * 9 + 2)
      intColumn = Int(Rnd * 9 + 2)
    Loop Until Cells(intRow, intColumn) <> ""

    Cells(intRow, intColumn) = ""

  Next intLoop

The Check button can be used to find out whether any numbers entered are incorrect. It races through the cells on the Solution sheet comparing them with the Puzzle sheet cells.

Sub Check()

'Show incorrect numbers in red on puzzle sheet

Dim intRow As Integer
Dim intColumn As Integer

  'Erase any previous red numbers

  Range("B2:J10").Font.Color = vbBlack

  For intRow = 2 To 10
    For intColumn = 2 To 10

      If Cells(intRow, intColumn) <> "" Then
        If Cells(intRow, intColumn) <> Worksheets("Solution").Cells(intRow, intColumn) Then
          Cells(intRow, intColumn).Font.Color = vbRed
        End If
      End If

    Next intColumn
  Next intRow

End Sub

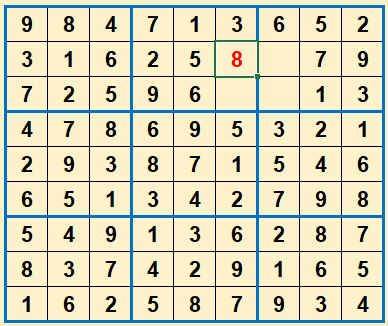

This is handy as there can sometimes be more than one solution although only one correct solution. In this example four cells can be a 4 or an 8. The red cell in this case is a 4.

Next is the Candidates procedure. You can leave it if you want, but it is used for another option later on. It will run every time a puzzle cell is selected.

Sub Candidates()

Dim intCandidate As Integer
Dim intLoop As Integer
Dim blnYes As Boolean

  'Clear the candidates when a number is in the cell and exit

  If ActiveCell <> "" Then
    Range("B15:J15") = ""
    Exit Sub
  End If

  'Check whether number is present somewhere

  For intCandidate = 1 To 9

    'Check block of 9 cells

    blnYes = funcCheck3x3(ActiveCell.Row, ActiveCell.Column, intCandidate)

    For intLoop = 2 To 10 'column and row number

      'Check along row

      If Cells(ActiveCell.Row, intLoop) = intCandidate Then blnYes = True

      'Check down column

      If Cells(intLoop, ActiveCell.Column) = intCandidate Then blnYes = True

    Next intLoop

    If blnYes Then

      'Not this candidate as number is already somewhere

      Cells(15, intCandidate + 1) = ""

    Else

      'Number not in row, column or block so show candidate

      Cells(15, intCandidate + 1) = intCandidate

    End If

    'Reset flag for next candidate

    blnYes = False

  Next intCandidate

End Sub



To get this to kick in, double click Sheet1 (Puzzle) in the Project Explorer then click Worksheet in the Combo box, as shown below, and add the following into the procedure.

Option Explicit

Private Sub Worksheet_SelectionChange(ByVal Target As Range)

  'Keep the cursor in the puzzle or Clear cell

  If Intersect(Target, Range("B2:J10")) Is Nothing _
  And Intersect(Target, Range("I13")) Is Nothing Then

    Range("F6").Select

  End If

  Candidates

End Sub

This procedure is now called every time another cell is selected.

Remember that the candidates can be hidden even if the above is added.
If it's time to give up on a puzzle then hit the Solve button.

Sub Solve()

'Check and show incorrect numbers in red and fill blanks with green numbers

Dim intRow As Integer
Dim intColumn As Integer

  Check

  For intRow = 2 To 10
    For intColumn = 2 To 10

      If Cells(intRow, intColumn) = "" Then

        Cells(intRow, intColumn) = Worksheets("Solution").Cells(intRow, intColumn)
        Cells(intRow, intColumn).Font.Color = vbGreen

      End If

    Next intColumn

  Next intRow

End Sub


Here is another way to solve the puzzle. Add a new sheet, named Candies, with expanded rows and columns for candidates.

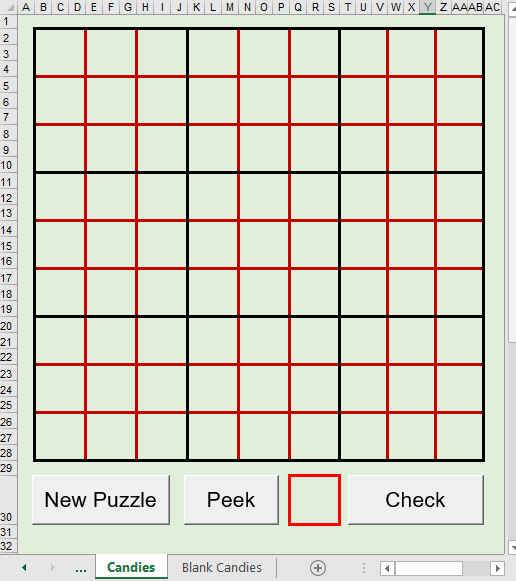

Make a copy called Blank Candies. A copy is going to be grabbed from Blank Candies at the start of the game but only down to row 28.

The NewCandiesPuzzle procedure copies the numbers off the Puzzle sheet. If there is a number then it gets enlarged to the 9 cells of a square. If there isn't a number then it inserts the candidates from the puzzle sheet.
So, to play Sudoku this way hit the New Puzzle button on the Puzzle sheet and then the New Puzzle button on the Candies sheet.

Sub NewCandiesPuzzle()

'This procedure shows either numbers or candidates in cells on the Candies sheet
'by grabbing the data from the Puzzle sheet

'Outer loop variables for main cells on Candies sheet

Dim intRowCandies As Integer
Dim intColumnCandies As Integer

'Inner loop variables for candidates

Dim intCandiesRow As Integer
Dim intCandiesColumn As Integer

'Main cells on Puzzle sheet

Dim intRowPuzzle As Integer
Dim intColumnPuzzle As Integer

'Candidate cells on Puzzle sheet

Dim intPuzzleCandidateColumn As Integer

Application.ScreenUpdating = False
Application.DisplayAlerts = False

  'Load blank sheet

  Sheets("Blank Candies").Range("B2:AB28").Copy Sheets("Candies").Range("B2")

  'Start in B2 on the Puzzle sheet
  intColumnPuzzle = 2
  intRowPuzzle = 2

  'Cycle through the top left cells on the Candies sheet

  For intRowCandies = 2 To 26 Step 3
    For intColumnCandies = 2 To 26 Step 3

      'Fetch what's in the Puzzle cell

      Worksheets("Candies").Cells(intRowCandies, intColumnCandies) _
      = Worksheets("Puzzle").Cells(intRowPuzzle, intColumnPuzzle)

      'Check whether the cell on the Candies sheet now displays a number

      If Worksheets("Candies").Cells(intRowCandies, intColumnCandies) <> "" Then

        'Yes, so merge the 9 cell block on the Candies sheet to show a big solved number

        Worksheets("Candies").Activate
        Range(Cells(intRowCandies, intColumnCandies), Cells(intRowCandies + 2, _
        intColumnCandies + 2)).Select
        With Selection
          .HorizontalAlignment = xlCenter
          .VerticalAlignment = xlCenter
          .MergeCells = True
          .Font.Size = 30
          .RowHeight = 15
        End With

      Else

        'No, so put the candidates in from the puzzle sheet

        intPuzzleCandidateColumn = 2
        Worksheets("Puzzle").Activate
        Cells(intRowPuzzle, intColumnPuzzle).Select

        'This fires the Candidates proc

        For intCandiesRow = 0 To 2
          For intCandiesColumn = 0 To 2

            'Place candidates into the 3 x 3 grid on the candies sheet

            Worksheets("Candies").Cells(intRowCandies + intCandiesRow, _
            intColumnCandies + intCandiesColumn) = _
            Worksheets("Puzzle").Cells(15, intPuzzleCandidateColumn)

            'from the Puzzle candidates cells in a straight row 15

            intPuzzleCandidateColumn = intPuzzleCandidateColumn + 1
          Next intCandiesColumn
        Next intCandiesRow

      End If

      'Move the Puzzle cell by 1 column for every 3 on the Candies sheet

      intColumnPuzzle = intColumnPuzzle + 1

    'Next third column on the Candies sheet

    Next intColumnCandies

    'Next row on the Puzzle sheet

    intRowPuzzle = intRowPuzzle + 1

    'Start again with first candidate on the Puzzle sheet

    intColumnPuzzle = 2

  'Next third row on the Candies sheet

  Next intRowCandies

  Worksheets("Candies").Select
  Application.DisplayAlerts = True

End Sub

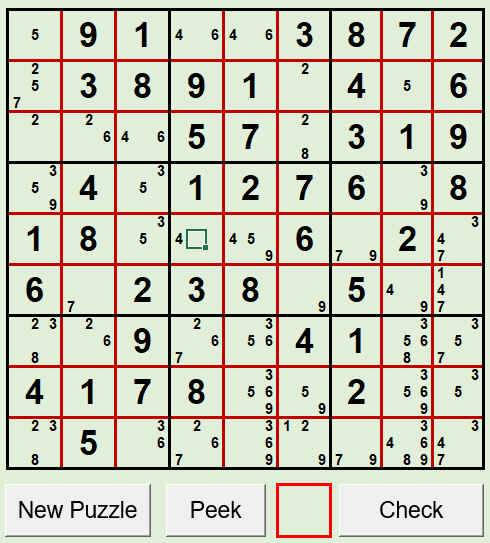

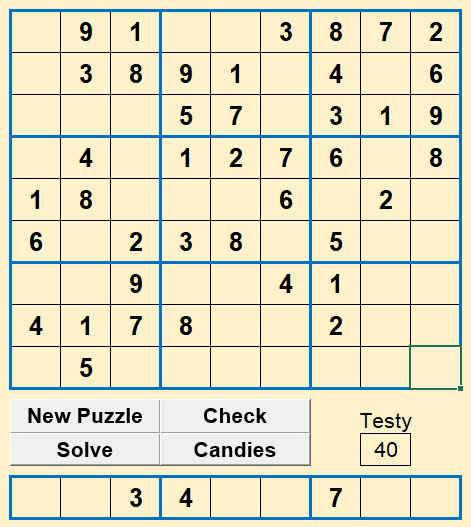

So we go from the above to the below. The candidates, above, are for the far bottom right cell.

But there is more to come. When, like before, there are 2 solutions, the Peek button will give the answer before entering the number. Click any of the candidate cells, then the Peek button.

Sub Peek()

Dim intRow As Integer
Dim intCol As Integer
Dim blnDummy As Boolean

  intRow = ActiveCell.Row
  intCol = ActiveCell.Column

  'Find the top left cell of candidates block

  TopLeftCell intRow, intCol

  'Peek the number from the Solution sheet

  Range("Q30") = Worksheets("Solution").Cells((intRow + 1) / 3 + 1, (intCol + 1) / 3 + 1)

End Sub

This is looking for the TopLeftCell procedure which will point intRow and intCol to the top left cell of this number cell. Note that the border formatting, red or black here,  has to be thick.

Sub TopLeftCell(iRow As Integer, iCol As Integer)

  'Find the top left cell of the 3 x 3 cells on the Puzzle sheet
  'or the top left cell of the 3 x 3 candidates on the Candies sheet
  'and set the callers intRow and intCol to it
  'The blocks of 9 cells must have thick borders

  Do

    If Cells(iRow, iCol).Borders(xlEdgeLeft).Weight <> xlThick Then
      iCol = iCol - 1
    End If

  Loop Until Cells(iRow, iCol).Borders(xlEdgeLeft).Weight = xlThick

  Do

    If Cells(iRow, iCol).Borders(xlEdgeTop).Weight <> xlThick Then
      iRow = iRow - 1
    End If

  Loop Until Cells(iRow, iCol).Borders(xlEdgeTop).Weight = xlThick

End Sub


Anytime the numbers entered can be checked for correctness.

Sub CheckCandiesPuzzle()

'Show incorrect numbers in red on Candies sheet

Dim intCandiesRow As Integer
Dim intCandiesColumn As Integer
Dim intSolutionRow As Integer
Dim intSolutionColumn As Integer

  intSolutionRow = 2
  intSolutionColumn = 2

  'Erase any previous red numbers

  Range("B2:AB28").Font.Color = vbBlack

  'The big font size indicates a solved number is present

  For intCandiesRow = 2 To 26 Step 3
    For intCandiesColumn = 2 To 26 Step 3

      If Cells(intCandiesRow, intCandiesColumn).Font.Size = 30 Then

        If Cells(intCandiesRow, intCandiesColumn) _
        <> Worksheets("Solution").Cells(intSolutionRow, intSolutionColumn) Then

          Cells(intCandiesRow, intCandiesColumn).Font.Color = vbRed

        End If

      End If

      'Increment solution column by 1 for 3 of candies
      intSolutionColumn = intSolutionColumn + 1

    Next intCandiesColumn

    'Increment solution row by 1 for 3 of candies

    intSolutionRow = intSolutionRow + 1

    'Start with first solution column again
    intSolutionColumn = 2

  Next intCandiesRow

End Sub


Just like the Puzzle sheet, the cursor is restriced tto the number squares. Double click Sheet 3 (Candies) on the VBA window, then click on worksheet in the top left Combo Box.

Private Sub Worksheet_SelectionChange(ByVal Target As Range)

  'Keep the cursor in the Candies puzzle

  If Intersect(Target, Range("B2:AB28")) Is Nothing Then

    Range("Q14").Select

  End If

End Sub

Now comes with my version of entering the number. With the cursor in the SelectionChange procedure select BeforeDoubleClick in the top right Combo Box.

Private Sub Worksheet_BeforeDoubleClick(ByVal Target As Range, Cancel As Boolean)

  AssignNumberToCell

End Sub


In a Module add the procedure  AssignNumberToCell. It could be added to the above proc.

Option Explicit

Sub AssignNumberToCell()

'Expand double clicked number to the 9 cells

Dim intRow As Integer
Dim intCol As Integer
Dim intR As Integer
Dim intC As Integer
Dim intValue As Integer
Dim intLoop As Integer

  intValue = ActiveCell

  'Exit if blank candidate cell clicked

  If intValue < 1 Then Exit Sub

  intRow = ActiveCell.Row
  intCol = ActiveCell.Column

  'Find the top left cell of candidates

  TopLeftCell intRow, intCol

  'Select all the candidate cells of this main cell

  Range(Cells(intRow, intCol), Cells(intRow + 2, intCol + 2)).Select

  'Merge Cells and assign Number

  Application.DisplayAlerts = False

  Selection.Merge
  Selection = intValue
  Selection.Font.Size = 30
  Selection.Font.Bold = True

  'Delete this candidate

End Sub

Now a double click of a candidate places the number. Don't blame me for any strain injury though. Here is the the final part.


  'Delete this candidate

  'along the 3 rows of the cell

  For intR = intRow To intRow + 2

    For intC = 2 To 28

      If Cells(intR, intC) = intValue And _
      Cells(intR, intC).Font.Size = 13 Then

        Cells(intR, intC) = ""

      End If

    Next intC

  Next intR

  'down the 3 cols of the cell
  For intC = intCol To intCol + 2
    For intR = 2 To 28
      If Cells(intR, intC) = intValue And _
      Cells(intR, intC).Font.Size = 13 Then
        Cells(intR, intC) = ""
      End If
    Next intR
  Next intC

  'in black bordered block of cells
  'Find top left corner of block

  intR = 2
  If intRow > 10 Then intR = 11
  If intRow > 19 Then intR = 20

  intC = 2
  If intCol > 10 Then intC = 11
  If intCol > 19 Then intC = 20

  'Delete candidate in block

  For intRow = intR To intR + 8

    For intCol = intC To intC + 8

      If Cells(intRow, intCol) = intValue And _
      Cells(intRow, intCol).Font.Size = 13 Then

        Cells(intRow, intCol) = ""

      End If

    Next intCol

  Next intRow

  Application.DisplayAlerts = True

End Sub

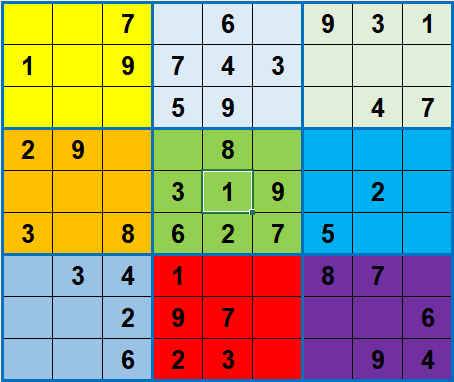

How about a bit of colour?

Next I wanted to be able to click a candidate to insert it into a puzzle cell. To do this I've added nine TextBoxes to sit over the candidate cells.
Name them TextBox 1 to TextBox 9 in the Name box as shown. This enables looping through the TextBoxes like an array.

The code is changed to interact with the candidate TextBoxes instead of the candidate cells. There are 2 modifications in the Candidates procedure.

Sub Candidates()

  'Clear the candidates when a number is in the cell and exit

  If ActiveCell <> "" Then

    For intLoop = 1 To 9

      ActiveSheet.TextBoxes("TextBox" & Str(intLoop)).Text = ""

    Next intLoop
    Exit Sub

  End If

and:

    If blnYes Then

      'Not this candidate as number is already somewhere

      ActiveSheet.TextBoxes("TextBox" & Str(intCandidate)).Text = ""

    Else

      'Number not in row, column or block so show candidate

      ActiveSheet.TextBoxes("TextBox" & Str(intCandidate)).Text = intCandidate

    End If

Note that "TextBox" & Str(intLoop) results as "TextBox 1".

The next change is when inserting candidates on the Candies sheet. I've changed the variable name from intPuzzleCandidateColumn to intTextBox to reflect the switch from cells to TextBoxes.

Sub NewCandiesPuzzle()

'Candidate TextBoxes along puzzle row 15

Dim intTextBox As Integer

        'No, so put the candidates in instead

        intTextBox = 1

and:

          For intCandiesColumn = 0 To 2

            'Place into a 3 x 3 grid

            Worksheets("Candies").Cells(intRowCandies + intCandiesRow, _
            intColumnCandies + intCandiesColumn) = _
            Worksheets("Puzzle").TextBoxes("TextBox" & Str(intTextBox)).Text

            'the candidates from puzzle sheet TextBoxes

            intTextBox = intTextBox + 1

          Next intCandiesColumn

We need a new macro that all the TextBoxes will call.

Sub InsertNumber()

  'Check that the TextBox clicked displays a number
  If Sheet1.TextBoxes(Application.Caller).Text <> "" Then

    'It does so put that number into the cell

    ActiveCell = Right(Application.Caller, 1)

  End If

End Sub

Now select all the candidate TextBoxes and assign the InsertNumber macro to them.
